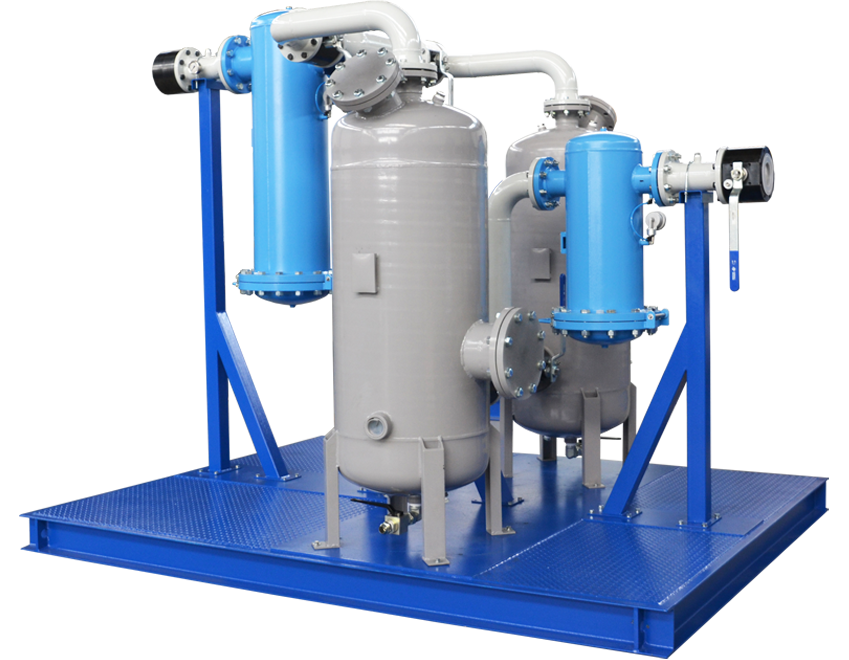

Non regenerative dryer series GRGDD is composed of two separate columns, filled with non regenerative material. When a column is in absorbing phase, the other one is in stand-by: in this way, it is possible to replace the absorbing material with total safety.
Work status change is made manually by the operator. Material used for absorption is of high-quality and helps the gas to reach a dew point up to – 80 °C.
MAIN TECHNICAL FEATURES
| Working pressure | 2÷6 bar / 6÷12 bar / 12÷20 bar |
| Capacity | 1500/2500 sm³/h |
| Number of columns | 1 or 2 columns |
| Quantity of absorbing material | 120 kg for each column |
| Filtration grade | Inlet filter 40 μ / Outlet filter 3 μ |
| Working temperature | -10 ÷ 50°C |
